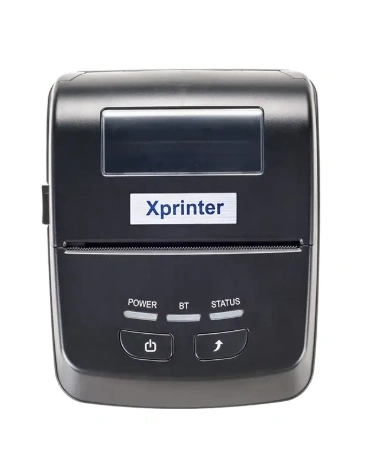

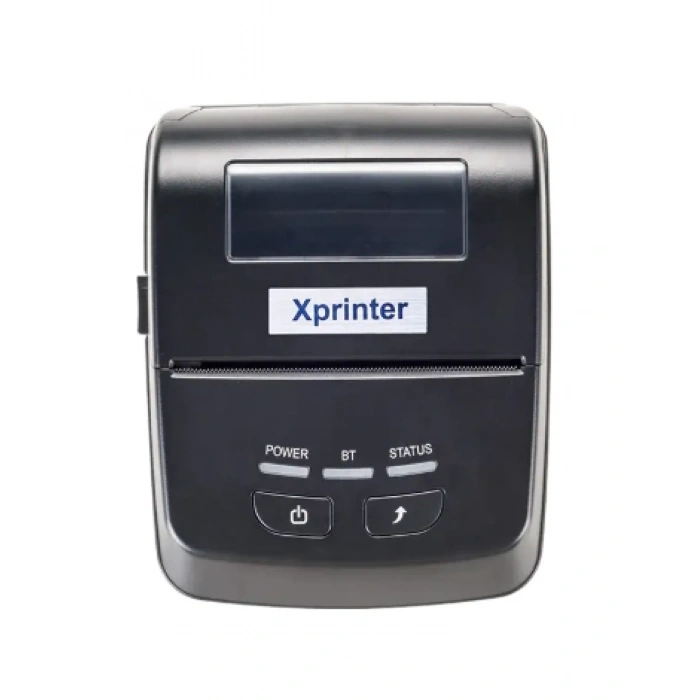

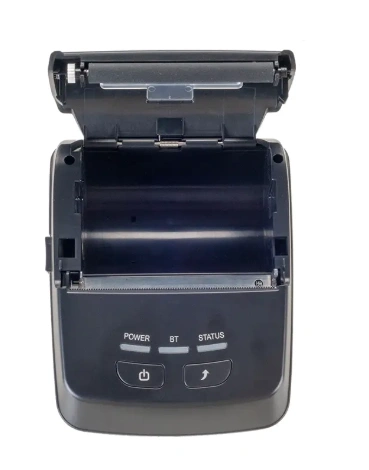

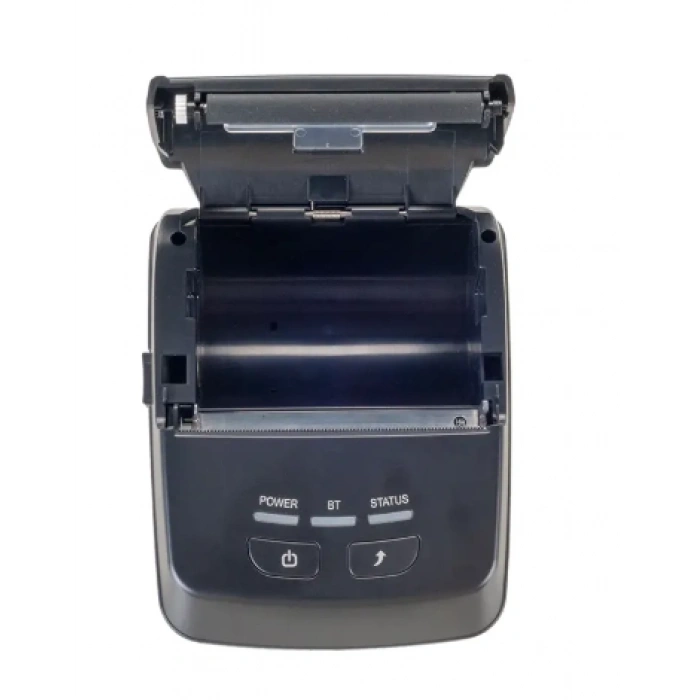

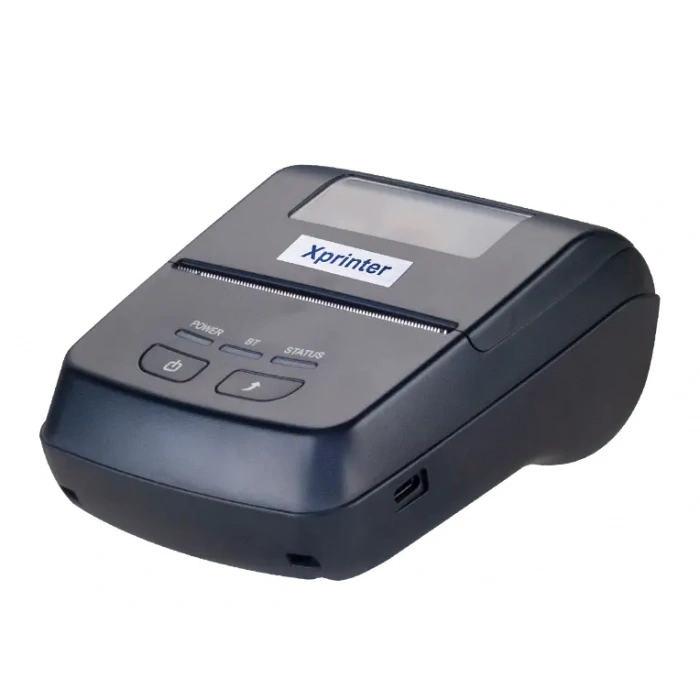

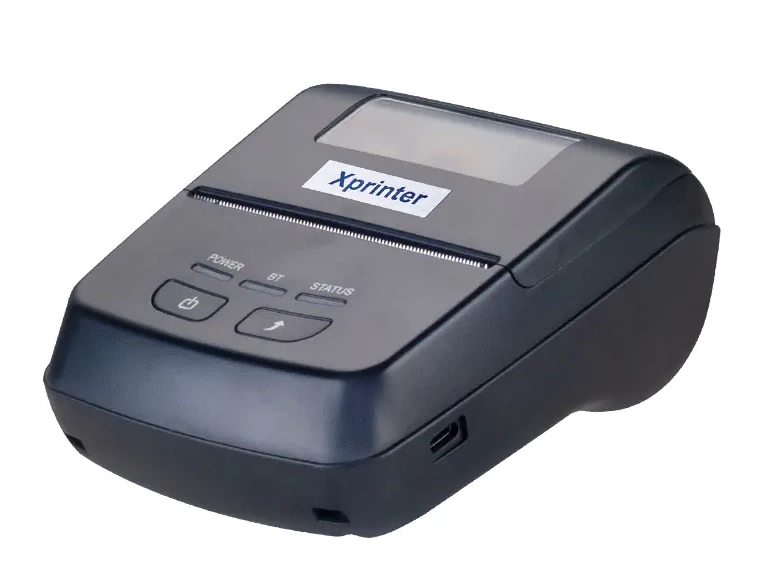

| Model | XP-P801A |
| Printing Features | |
| Printing method | Direct thermal |
| Resolution | 203 DPI |
| Line spacing | 3.75mm (Adjustable by commands) |
| Print width | 72 mm |
| Print speed | 70 mm/s |
| Paper width | 80 mm |
| Media roll diameter | 50mm |
| Performance Features | |
| Interfaces | USB+Bluetooth(1+1) |
| Input buffer | 128 Kbytes |
| NV Flash | 4M Kbytes |
| Emulation | ESC/POS |
| Fonts/Graphics/Symbologies | |
| Character size | ANK,Font A:1.5×3.0mm(12×24 dots)Font B:1.1×2.1mm(9×17 dots) simplified/traditional Chinese:3.0×3.0mm(24×24 dots) |
| Barcode types | 1D:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
Extended character sheet | PC347(Standard Europe) / Katakana / PC850(Multilingual) / PC860(Portuguese) / PC863(Canadian-French) / PC865(Nordic) / West Europe / Greek / Hebrew / East Europe / Iran / WPC1252 / PC866(Cyrillic#2) / PC852(Latin2) / PC858 / IranII / Latvian / Arabic / PT151(1251) |
| Physical Features | |
| Dimension | 135*105*61.5mm (L*W*H) |
| Weight | 0.3 kg |
| Compatible systems | |
| Systems | Windows/Android/iOS/Linux |
| Power supply | |
| Battery | 7.4V / 1800mAh |
| Charging input | DC 5V / 2A |
| Environmental Conditions | |
| Operation environment | 0~45?,10~80%RH no condensing |
| Storage environment | -10~60 ?,≤10~90% RH no condensing |
